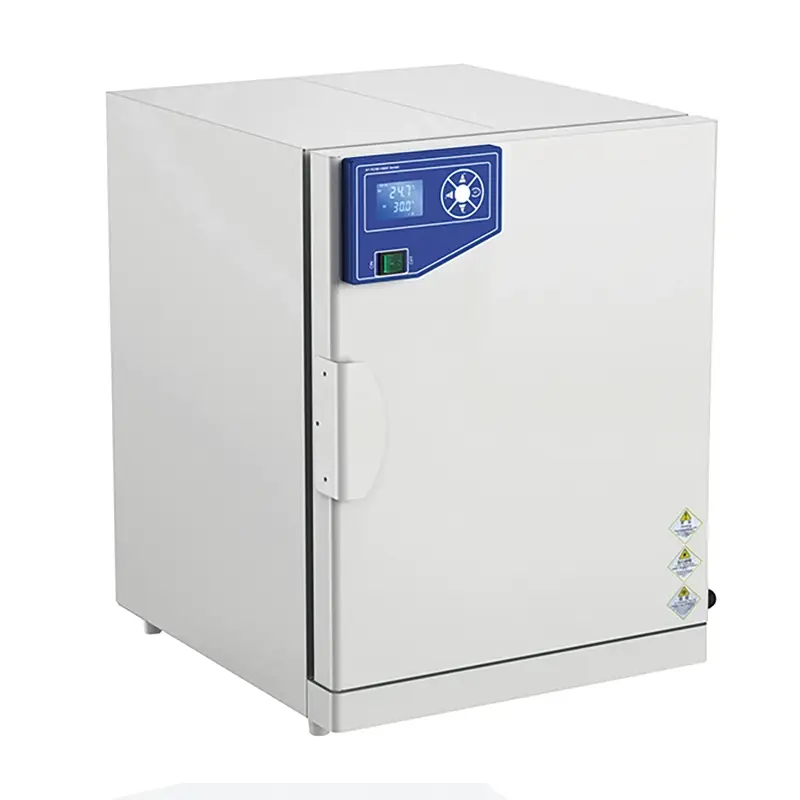

Name：Waterproof incubator (LCD screen)
Model：GH-360BC
Subdivide：
Details
Parameter
Features
Question
Product Description
It is suitable for the cultivation, growth and scientific research of microorganisms, bacteria and other units in modern medicine, biochemistry, agriculture, food, industrial and mining enterprises.
Features
The shell is made of high-quality steel plate, with electrostatically sprayed surface. The paint film is firm and the shape is beautiful. The inner liner is made of high quality 304 stainless steel plate, which is anti-corrosion and anti-aging. With four-corner arc design, no sanitary corner, it is easy to clean. The height of the shelves can be adjusted, makes it more convenient for the user's operation.
The temperature control system adopts microcomputer single-chip technology, has LCD display, with temperature control, timing, over temperature alarm and other functions. The time setting range is: 0-9999 minutes.
Intelligent water level control system will remind the users whether water is enough by sound and light, to prevent water shortage.
The three sides of the incubator are heated by a water jacket, and the top is equipped with a low-noise small fan to promote air circulation, ensuring uniform temperature in the working chamber.
It has a double door design. After opening the outer door, you can observe the items through the built-in large glass door. The door is made of magnetic sealing strip, which is easy to open and well-sealed.
The printer and RS-485/232 interface can be added before ordering according to user's requirements.
The main technical parameters:
Power supply : 110V/220V 50/60HZ
Inner size : W350 *D350*H410mm
Outer size : W480*D500 *H770mm
Packaged size: W620*D600*H840mm
Shelf : 2 layers
Average Power : 0.45kw
Temperature control range : RT+5-65℃
Temperature fluctuation ：±0.2℃
N.W: 50kg; G.W: 63kg
It is suitable for the cultivation, growth and scientific research of microorganisms, bacteria and other units in modern medicine, biochemistry, agriculture, food, industrial and mining enterprises.
Features
The shell is made of high-quality steel plate, with electrostatically sprayed surface. The paint film is firm and the shape is beautiful. The inner liner is made of high quality 304 stainless steel plate, which is anti-corrosion and anti-aging. With four-corner arc design, no sanitary corner, it is easy to clean. The height of the shelves can be adjusted, makes it more convenient for the user's operation.
The temperature control system adopts microcomputer single-chip technology, has LCD display, with temperature control, timing, over temperature alarm and other functions. The time setting range is: 0-9999 minutes.
Intelligent water level control system will remind the users whether water is enough by sound and light, to prevent water shortage.
The three sides of the incubator are heated by a water jacket, and the top is equipped with a low-noise small fan to promote air circulation, ensuring uniform temperature in the working chamber.
It has a double door design. After opening the outer door, you can observe the items through the built-in large glass door. The door is made of magnetic sealing strip, which is easy to open and well-sealed.
The printer and RS-485/232 interface can be added before ordering according to user's requirements.
The main technical parameters:
Power supply : 110V/220V 50/60HZ
Inner size : W350 *D350*H410mm
Outer size : W480*D500 *H770mm
Packaged size: W620*D600*H840mm
Shelf : 2 layers
Average Power : 0.45kw
Temperature control range : RT+5-65℃
Temperature fluctuation ：±0.2℃
N.W: 50kg; G.W: 63kg
Power supply : 110V/220V 50/60HZ
Inner size : W350 *D350*H410mm
Outer size : W480*D500 *H770mm
Packaged size: W620*D600*H840mm
Shelf : 2 layers
Average Power : 0.45kw
Temperature control range : RT+5-65℃
Temperature fluctuation ：±0.2℃
N.W: 50kg; G.W: 63kg
Inner size : W350 *D350*H410mm
Outer size : W480*D500 *H770mm
Packaged size: W620*D600*H840mm
Shelf : 2 layers
Average Power : 0.45kw
Temperature control range : RT+5-65℃
Temperature fluctuation ：±0.2℃
N.W: 50kg; G.W: 63kg
| Model | GH-360BC | GH-400BC | GH-500BC | GH-600BC | |
| Application | Laboratory bacterial incubator | ||||
| Air circulation type | Forced convection | ||||
| Performance | Operating temperature range | RT+5~65℃ | |||
| Temperature resolution | 0.1℃ | ||||
| Temperature fluctuation | ±0.2℃ | ||||
| Temperature uniformity | ±1℃ | ||||
| Structure | Liner material | 304 stainless steel | |||
| Shell material | Cold rolled steel plate electrostatic spraying | ||||
| Insulation materials | PU | ||||
| Heating element | Stainless steel heating tube | ||||
| Rated power | 0.45kw | 0.65kw | 0.85kw | 1.35kw | |
| Temperature control | LCD screen | ||||
| Controller | Temperature setting | Tap the four buttons to set | |||
| Temperature display | Actual temperature: LCD display (line 1); set temperature: LCD display (line 2) | ||||
| Timing | 0~9999 minutes (with timing function) | ||||
| Running function | Timed running, fixed value running, automatic stop | ||||
| Program mode | Optional | ||||
| Sensor | Pt100 | ||||
| Additional features | Deviation correction, menu button lock, power failure compensation, power failure memory | ||||
| Safety equipment | Over temperature alarm | ||||
| Specification | Inner size(W*D*H mm) | 350*350*410 | 400*400*500 | 500*500*650 | 600*600*750 |
| Outer size(W*D*H mm) | 480*500*770 | 530*550*860 | 630*650*1000 | 730*750*1100 | |
| Package size(W*D*H mm) | 620*600*840 | 690*650*950 | 750*750*1120 | 880*860*1160 | |
| Capacity | 50L | 80L | 160L | 270L | |
| Partition load bearing | 15KG | ||||
| Voltage (50/60Hz) / rated current | AC220V/2A | AC220V/2.9A | AC220V/3.9A | AC220V/6.1A | |
| N.W/G.W | 50/63kg | 65/78kg | 70/84kg | 90/105kg | |
| Accessory | Partition | 2pcs | |||
| Optional device |
Separator, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage |
||||
| Product page link | Details | Details | Details | Details | |
|
Model |
GH-360BC |
GH-400BC |
GH-500BC |
GH-600BC |
|
Air circulation type |
Forced convection |
|||
|
Inner size (W*D*H mm) |
350*350*410 |
400*400*500 |
500*500*650 |
600*600*750 |
|
Outer size (W*D*H mm) |
480*500*770 |
530*550*860 |
630*650*1000 |
730*750*1100 |
|
Rated power |
0.45kw |
0.65kw |
0.85kw |
1.35kw |
|
Capacity |
50L |
80L |
160L |
270L |
|
N.W./G.W. |
50/63kg |
65/78kg |
70/84kg |
90/105kg |
|
Liner material |
304 stainless steel |
|||
|
Shell material |
Cold rolled steel plate electrostatic spraying |
|||
|
Operating temperature range |
RT+5~65℃ |
|||
|
Temperature fluctuation |
±0.2℃ |
|||
|
Timing |
0~9999 minutes (with timing function) |
|||
|
Power supply |
AC220V 50/60HZ |
|||
1. Can you customize the product?
Yes, we can customize any products according to customer’s requirements.
2. Which payment terms are you doing?
T/T (Bank telegraphic transfer,100% payment in advance.).
PayPal (Paypal only pay less than $500, and must be transported by Express.).
West Union.
3. Which shipment is available?
Sea freight, air transport, rail transport, international express or as your requirements.
4. Which country you have been exported?
Our products have been exported to many countries, more than 100 countries and regions around the world.
5. How long is the delivery time?
It’s about 7-20 days.
6、What trade methods do you offer?
The trade methods we support are FOB, FCA, CIF,EXW,DDU.
Yes, we can customize any products according to customer’s requirements.
2. Which payment terms are you doing?
T/T (Bank telegraphic transfer,100% payment in advance.).
PayPal (Paypal only pay less than $500, and must be transported by Express.).
West Union.
3. Which shipment is available?
Sea freight, air transport, rail transport, international express or as your requirements.
4. Which country you have been exported?
Our products have been exported to many countries, more than 100 countries and regions around the world.
5. How long is the delivery time?
It’s about 7-20 days.
6、What trade methods do you offer?
The trade methods we support are FOB, FCA, CIF,EXW,DDU.
