Product Description

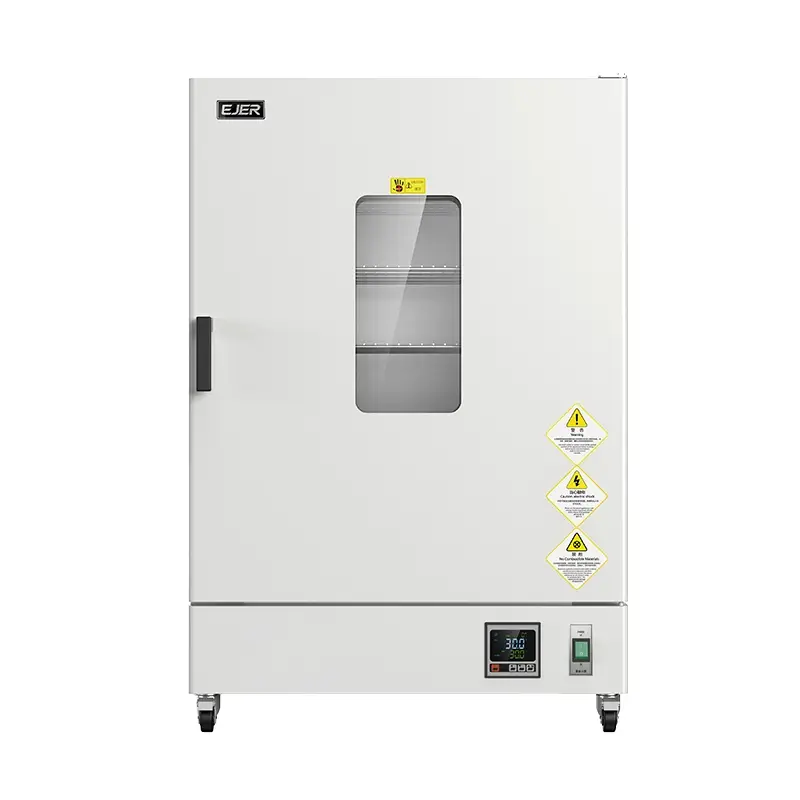

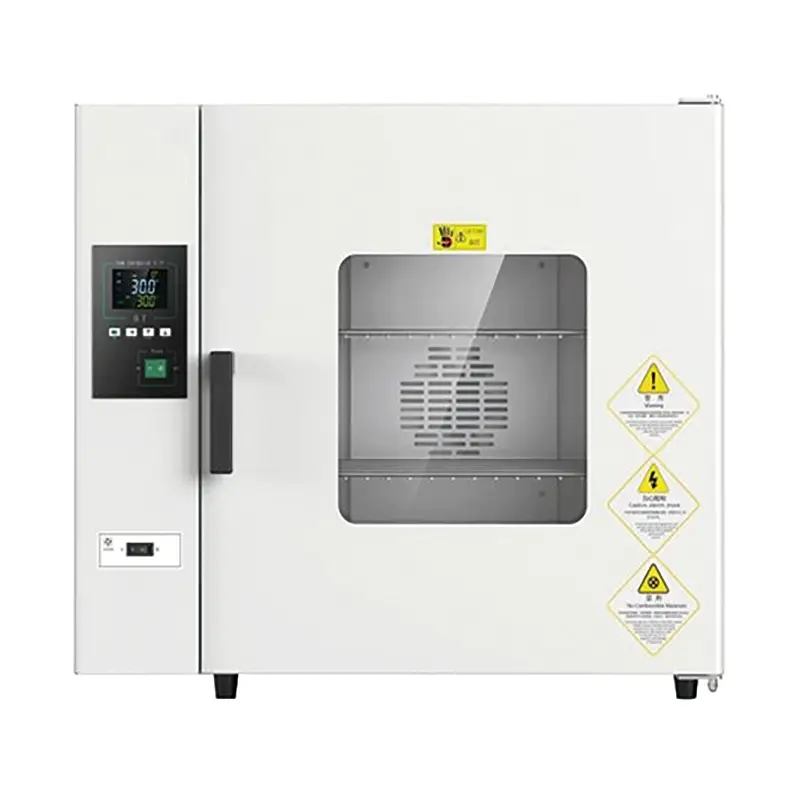

The high temperature blast drying oven has a maximum working temperature
of 500 ° C and can be used for various items. It is suitable for baking,
drying, heat treatment and other heating, industrial or laboratory use.
(However, volatile items should be placed in a dry box to avoid explosion).
Features
The high temperature electric blast drying oven has a box body, a
temperature control system and a blast circulation system.
The box is made of high-quality cold-rolled steel plate,
sprayed on the surface, and the inner liner is made of high quality stainless
steel.
Between the inner casing and the outer casing is filled with rock wool for
insulation .
The temperature control system uses a microcomputer chip
processor. With PID adjustment characteristics, time setting, temperature
difference correction, over temperature alarm and other functions, high
temperature control accuracy and strong function. The time setting range is:
0-9999 minutes.
The blast circulation system sends heat to the working
chamber through the air duct and forces the exchange of hot and cold air in the
working chamber, thereby increasing the temperature uniformity of the
temperature field in the working chamber.
The printer and RS-485/232 interface can be added before
ordering according to user's requirements. (option)
The main technical parameters:
Power supply : 380V 50/60HZ
Inner size : W450 * D550 * H550mm
Outer size : W685* D980 * H920mm
Packaged size: W800* D1050 * H970mm
Shelf : 2 layers
Average Power : 6000W
Temperature control range : RT+10-500℃
Temperature fluctuation ：±1℃
N.W:100kg; G.W:115kg
Power supply :380V 50/60HZ
Inner size :W450 * D550 * H550mm
Outer size :W685* D980 * H920mm
Packaged size:W800* D1050 * H970mm
Shelf :2 layers
Average Power :6000W
Temperature control range:RT+10-500℃
Temperature fluctuation :±1℃
N.W:100kg; G.W:115kg
| Model | HZLG-9071B | HZLG-9136B | HZLG-9255B |
| Application | For drying, baking, wax melting, sterilization, curing |
| Air circulation type | Duct circulation, mechanical convection |
| Performance | Operating temperature range | RT+10~500℃ |
| Temperature resolution | 1℃ |
| Temperature fluctuation | ±1℃ |
| Temperature uniformity | ±2.5％ |
| Structure | Liner material | Stainless steel plate
|
| Shell material | Cold rolled steel plate electrostatic spraying |
| Insulation materials | Aluminum silicate fiber |
| Heating element | Alloy wire |
| Rated power | 4kw | 6kw | 7.5kw |
| Vent | 45mm diameter, 1 hole |
| Controller | Temperature control | Double-column digital tube, PID |
| Temperature setting | Tap the four buttons to set |
| Temperature display | Actual temperature: digital tube display (line 1); set temperature: digital tube display (line 2)
|
| Timing | 0~9999 minutes (with timing function) |
| Running function | Timed running, fixed value running, automatic stop |
| Program mode | Optional |
| Sensor | K type |
| Additional features | Deviation correction, menu button lock, power failure compensation, power failure memory |
| Safety equipment | Over temperature alarm |
| Specification | Inner size(W*D*H mm) | 350*450*450 | 450*550*550 | 500*600*750 |
| Outer size(W*D*H mm) | 635*880*820 | 735*980*920 | 785*1030*1120 |
| Package size(W*D*H mm) | 900*950*870 | 800*1050*970 | 830*1090*1160 |
| Capacity | 71L | 136L | 225L |
| Partition load bearing | 15kg |
| Separator spacing | 80mm | 85mm | 110mm |
| Voltage (50/60Hz) / rated current | AC220V | AC380V | AC380V |
| N.W/G.W | 60/70kg | 100/115kg | 110/125kg |
| Annex | Partition
| 2 layers |
| Optional device | Separator, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage |
| Product page link | Details | Details | Details |
| Model | HZLG-9071B | HZLG-9136B | HZLG-9255B |
Workroom size (W*D*H) mm | 350*450*450 | 450*550*550 | 500*600*750 |
External dimensions (W*D*H) mm | 635*880*820 | 735*980*920 | 785*1030*1120 |
| Power | 4000W | 6000W | 7500W |
| N.W./G.W. | 60/70kg | 100/115kg | 110/125kg |
| Power supply | AC220V | AC380V |
| Temperature fluctuation | ±1℃ |
| Shelf | 2PCS |
| Temperature control range | RT+10-500℃ |
| External material | High quality cold rolled steel; |
| Internal material | Stainless steel |
